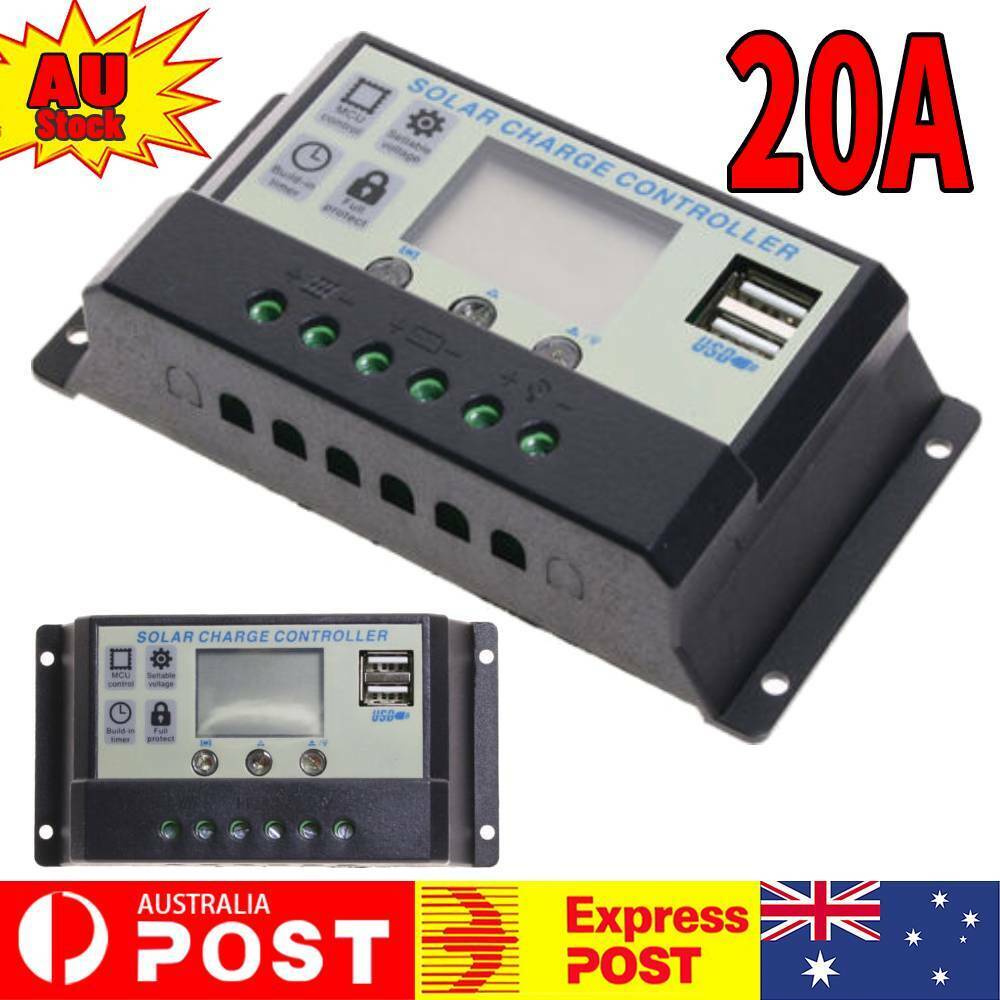

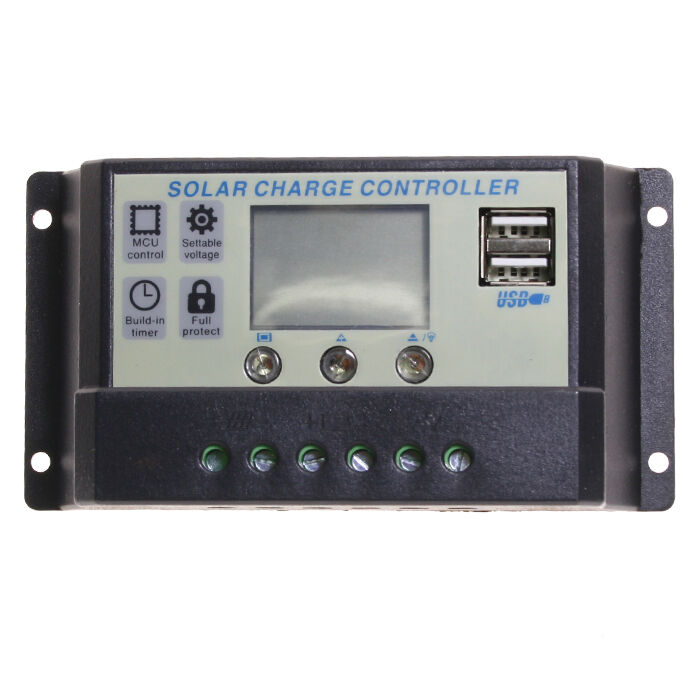

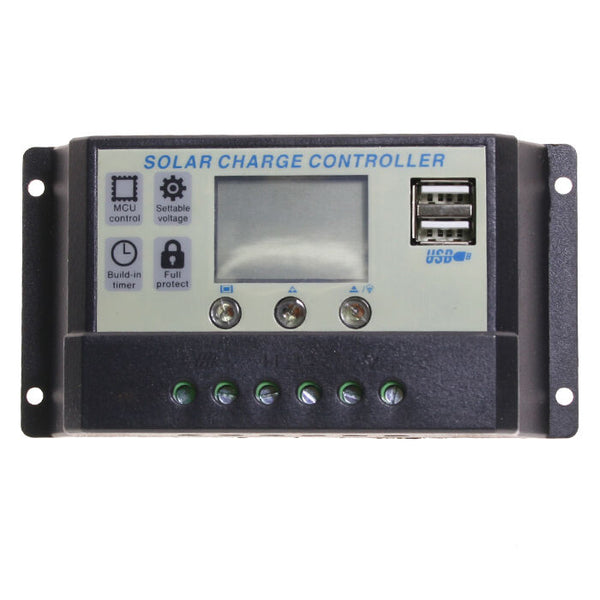

20A Solar Charger Controller 12V 24V Battery Panel Regulator USB Output

• 100% Brand new and high quality
• Solar power generation system ideal forfarming ; street light ; garden lights ; intelligent homeproduct etc.
• LCD display
• All necessary protections equipped
• Adjustable controlling parameter of thesystem
• With double USB ports charge
• Automatically recognizing day/night
• Temperature compensation
• Dual mosfet reverse current protection,low heat production
• Solar controller has specificallydesigned to meet the needs of the rural electrification market.The low cost resulted from using the latest electronictechnology and high volume manufacturing.
• The solar controllers electronics areprotected with moisture-tight coating, minimizing damage fromhumidity and from nesting insects.
• Solar controller is fully automatic andrequires no adjustments or user selections.
• Specification:
  • Current Rating: 20A
  • Rated Voltage: 12V / 24V
  • Float Voltage: 13.7V
  • Discharge Recovery Voltage: 12.6V
  • Discharge Cutoff Voltage: 10.7V
  • Operating Temperature: -35? to +60?

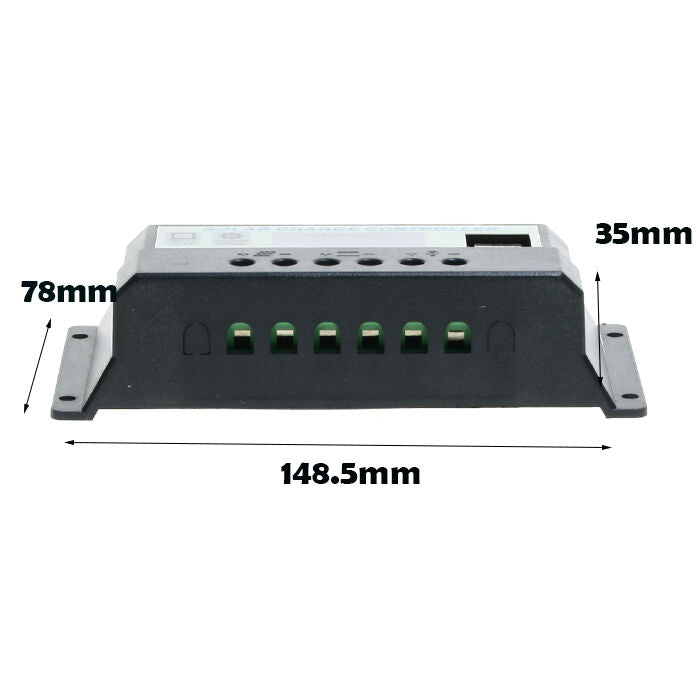

  • Size: (Approx. 78 x 149 x 35mm

Package Included:

1x 12V/24V 20A Solar Charge Controller
